Bundle Cutting Series Band Saws

Engineered for Accuracy and Efficiency

Our Bundle Cutting Series Band Saws are engineered for precision, durability, and efficiency. With robust construction, automatic operation, and optional top clamps for bundle cutting, these machines deliver consistent performance across a range of cutting capacities. Whether pivot or double column design, each model is equipped with PLC control, hydraulic vises, and cast bodies to minimize vibration and maximize accuracy.

Need something slightly different?

We offer models beyond what’s listed here.
Custom configurations available to fit your needs.
Reach out — we’ll help you find the right fit.

Description

BUNDLE CUTTING SERIES BAND SAWS

FMS offers a range of automatic band saws designed specifically for bundle cutting applications, each equipped with direct drive gearboxes for maximum power transmission. All models feature:

Hydraulic vises that automatically secure material
Precision linear guides for accurate cutting
Cast body construction to reduce vibration
Programmable PLC control panel
- Enter cut lengths and quantities
- Store up to 50 worklists
- Input up to 20 cutting sizes per job
Feeder vices automatically advance material
Optional hydraulic top clamps for bundle cutting
Standard controls for chip removal, blade speed, feed rate, and cutting force

These saws are available in pivot-type or double column body styles to match your application needs.

The chart below highlights the key differences to help you choose the right model based on your production volume and material size:

Model	Cutting Capacity (mm)	Miter Range	Miter Directions	Body Design	Operation Type

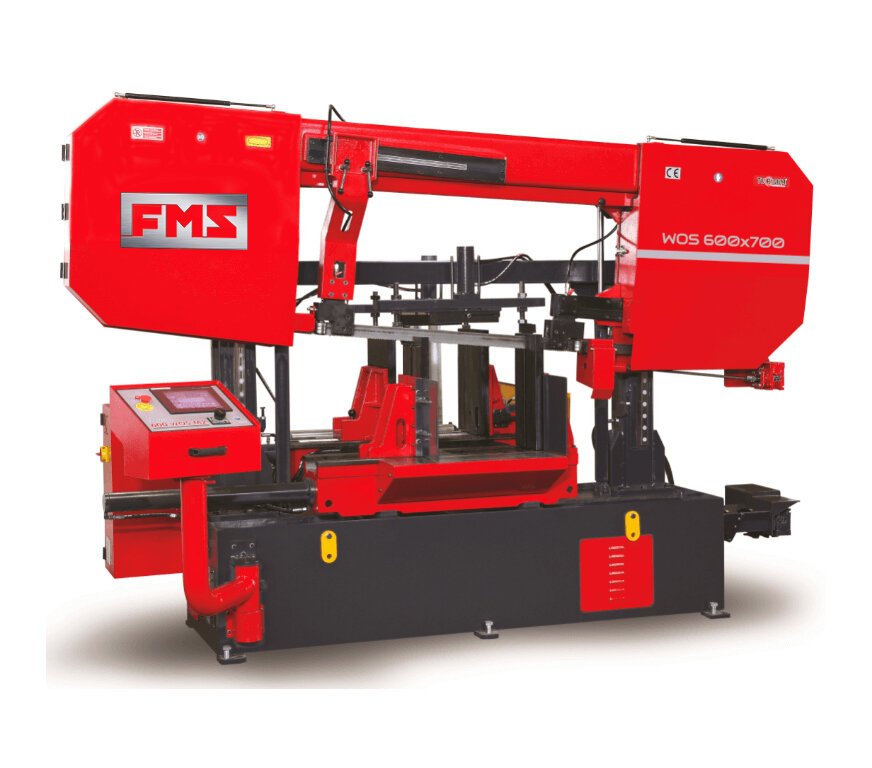

WOS 600×700	600 x 700	90°	None	Double Column	Automatic

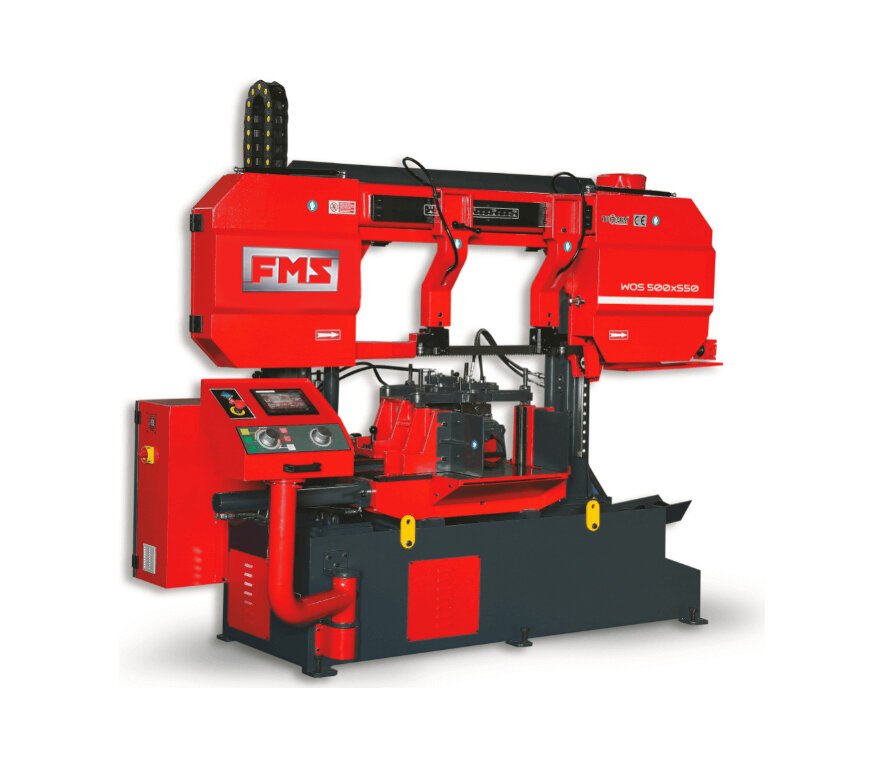

WOS 500×550	500 x 550	90°	None	Double Column	Automatic

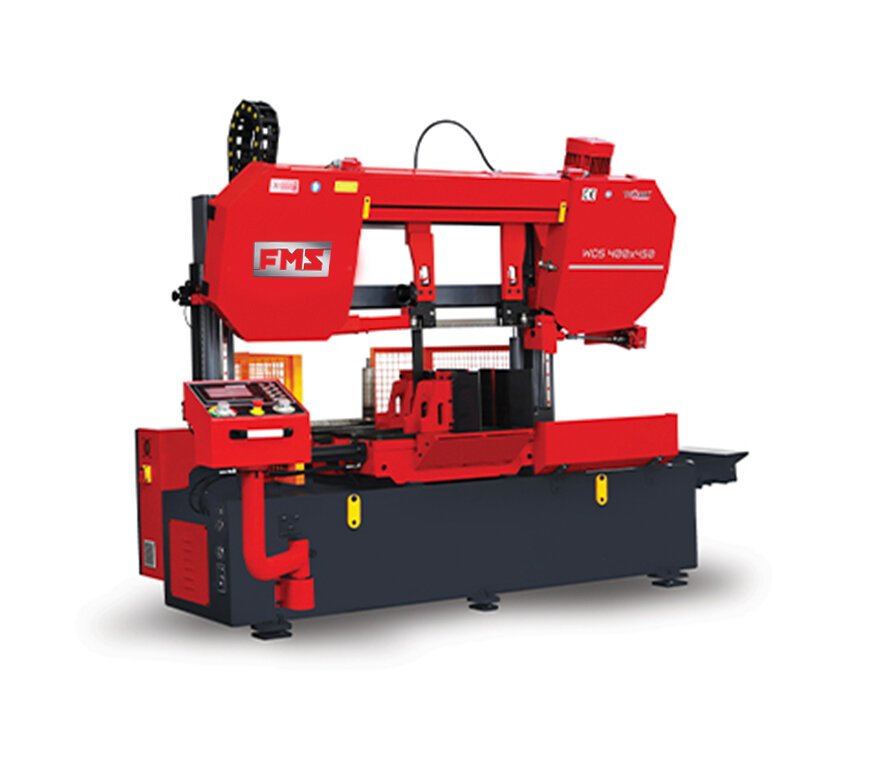

WOS 400×450	400 x 450	90°	None	Double Column	Automatic

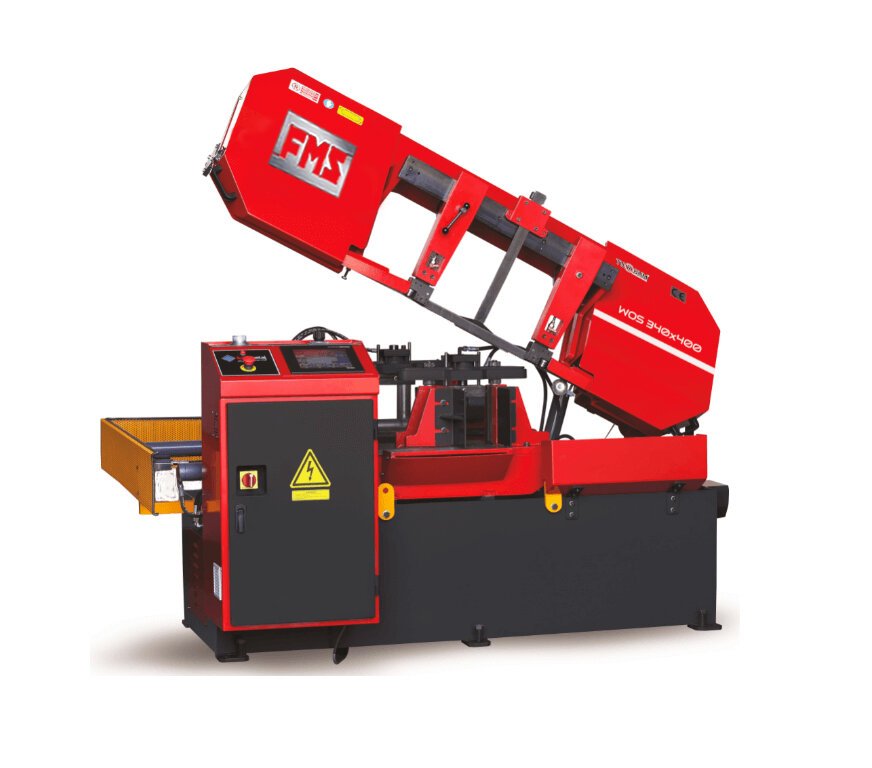

WOS 340×400	340 x 400	90°	None	Pivot Type	Automatic

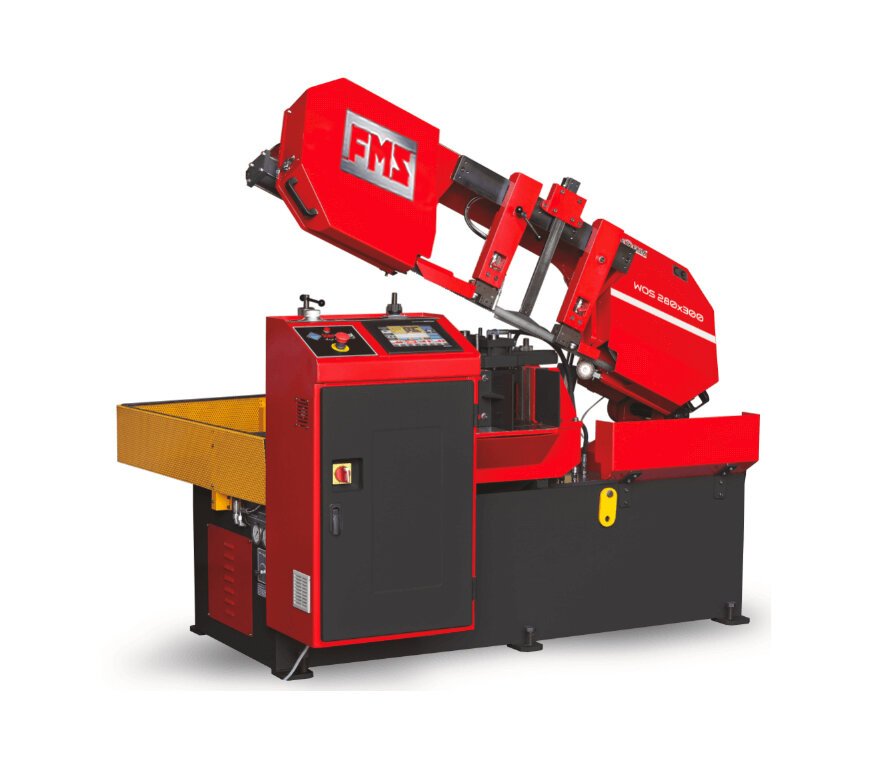

WOS 280×300	280 x 300	90°	None	Pivot Type	Automatic
