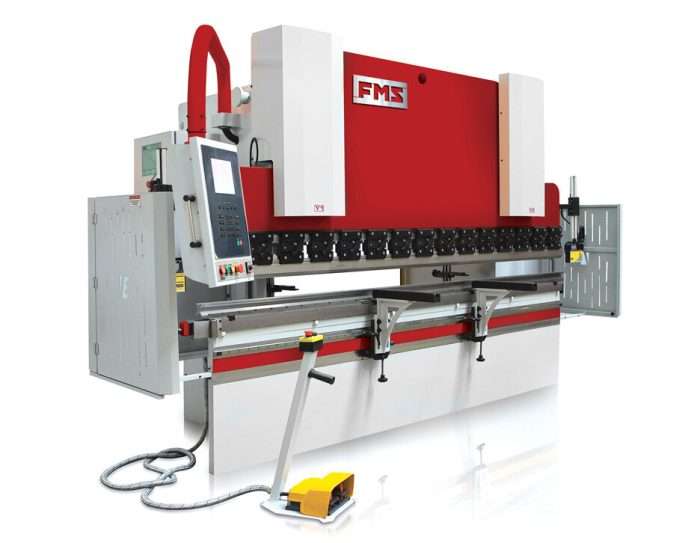

FMS EX SERIES PRESS BRAKES

Need something slightly different?

Description

EX Press Brake	Bending Force	Bending Length	Between Housings	Stroke	Open Height	Throat	Height	App. Speed	Forming Speed	Return Speed	Motor H.P.	Weight
MODEL	TON	IN.	IN.	IN.	IN.	IN.	IN.	IPM	IPM	IPM	H.P.	LBS.
66EX5	66	60	51.18	8	16	12.2	33.5	450	24	285	7.5	8,818
88EX6	88	82	67	8	16	12.2	33.5	450	24	285	10	11,023
110EX8	110	102	86.6	10.43	19	20	35.4	450	24	285	15	14,330
110EX10	110	122	102.4	10.43	19	20	35.4	450	24	285	15	17,196
150EX10	150	122	102.4	10.43	19	20	35.4	450	24	285	20	19,841
200EX10	200	122	102.4	10.43	19	20	35.4	400	24	285	25	23,148
250EX10	250	122	102.4	10.43	19	20	35.4	400	24	285	30	26,455
300EX10	300	122	102.4	10.43	19	20	37.4	350	21	260	30	28,660
350EX10	350	122	102.4	14.37	23	20	37.4	300	21	260	40	33,069
440EX10	440	122	94.48	14.37	23	20	37.4	300	21	260	50	41,887
200EX12	200	145	126	10.43	19	20	37.4	400	24	285	25	25,353
250EX12	250	145	126	10.43	19	20	39.4	350	24	285	30	29,762
350EX12	350	145	126	14.37	23	20	39.4	300	24	285	40	40,785
200EX13	200	161	141.7	10.43	19	20	37.4	300	24	285	25	26,455
250EX13	250	161	141.7	10.43	19	20	39.4	300	24	285	30	33,069
300EX13	300	161	141.7	10.43	19	20	39.4	300	21	190	30	38,580
350EX13	350	161	141.7	14.37	23	20	39.4	250	21	190	40	46,297
440EX13	440	161	133.8	14.37	23	20	39.4	250	21	190	50	56,217
250EX20	250	240	200.8	10.43	19	20	45.3	250	21	190	40	52,910
350EX20	350	240	200.8	14.37	23	20	45.3	250	21	190	40	62,831
440EX20	440	240	200.8	14.37	23	20	47.3	200	21	150	50	79,366
660EX20	660	240	200.8	14.37	23	20	39.4	200	15	165	60	119,049
880EX20	880	240	200.78	16.33	25	24	39.4	200	14	150	75	154,323
1100EX20	1100	240	200.78	20.27	28.9	24	41	200	12	150	75	171,960
1100EX20	1375	240	200.78	20.27	28.9	24	41	200	12	150	120	213,848
