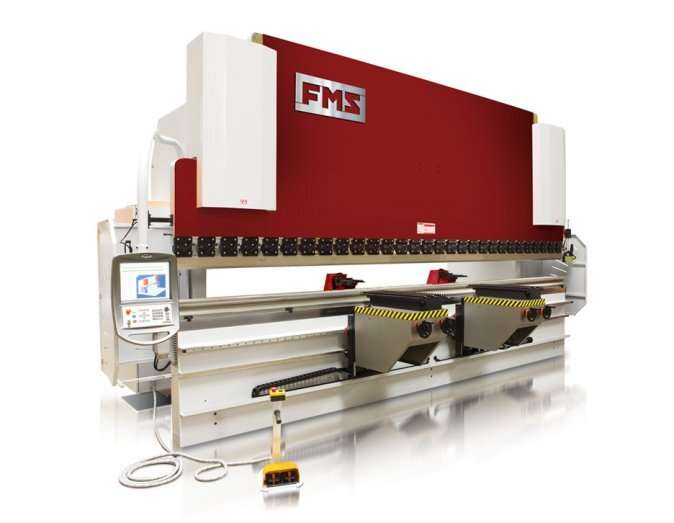

FMS ZX SERIES PRESS BRAKES

Starting at $70,000

Two times the speed of many conventional press brakes, the FMS Speed Series is your top choice for delivering speed and performance to the bending process.

Need something slightly different?

We offer models beyond what’s listed here.
Custom configurations available to fit your needs.
Reach out — we’ll help you find the right fit.

Description
Reviews (0)

Description

Standard 6-Axis (Y1, Y2, X, R, Z1, Z2)
Optional 8-Axis (Y1, Y2, X1, X2, R1, R2, Z1, Z2)
Available from 66-2,000 Ton Models
Standard 15 inch 2D CNC Touch Screen Controls
Optional 21 inch 2D CNC Touch Screen Controls
Optional 3D CNC & 3D Software
Lengths from 4 ft – 20 ft
Precision Built in. + .0004″ Ram Repeatability
Custom tonnages and sizes available upon request.

ZX Press Brake	Bending Force	Bending Length	Between Housings	Stroke	Open Height	Throat	Height	App. Speed	Forming Speed	Return Speed	Motor H.P.	Weight
MODEL	TON	IN.	IN.	IN.	IN.	IN.	IN.	IPM	IPM	IPM	H.P.	LBS.
66ZX5	66	60	51.18	8	16	12.2	33.5	450	24	285	7.5	8,818
88ZX6	88	82	67	8	16	12.2	33.5	450	24	285	10	11,023
110ZX8	110	102	86.6	10.43	19	20	35.4	450	24	285	15	14,330
110ZX10	110	122	102.4	10.43	19	20	35.4	450	24	285	15	17,196
150ZX10	150	122	102.4	10.43	19	20	35.4	450	24	285	20	19,841
200ZX10	200	122	102.4	10.43	19	20	35.4	400	24	285	25	23,148
250ZX10	250	122	102.4	10.43	19	20	35.4	400	24	285	30	26,455
300ZX10	300	122	102.4	10.43	19	20	37.4	350	21	260	30	28,660
350ZX10	350	122	102.4	14.37	23	20	37.4	300	21	260	40	33,069
440ZX10	440	122	94.48	14.37	23	20	37.4	300	21	260	50	41,887
200ZX12	200	145	126	10.43	19	20	37.4	400	24	285	25	25,353
250ZX12	250	145	126	10.43	19	20	39.4	350	24	285	30	29,762
350ZX12	350	145	126	14.37	23	20	39.4	300	24	285	40	40,785
200ZX13	200	161	141.7	10.43	19	20	37.4	300	24	285	25	26,455
250ZX13	250	161	141.7	10.43	19	20	39.4	300	24	285	30	33,069
300ZX13	300	161	141.7	10.43	19	20	39.4	300	21	190	30	38,580
350ZX13	350	161	141.7	14.37	23	20	39.4	250	21	190	40	46,297
440ZX13	440	161	133.8	14.37	23	20	39.4	250	21	190	50	56,217
250ZX20	250	240	200.8	10.43	19	20	45.3	250	21	190	40	52,910
350ZX20	350	240	200.8	14.37	23	20	45.3	250	21	190	40	62,831
440ZX20	440	240	200.8	14.37	23	20	47.3	200	21	150	50	79,366
660ZX20	660	240	200.8	14.37	23	20	39.4	200	15	165	60	119,049
880ZX20	880	240	200.78	16.33	25	24	39.4	200	14	150	75	154,323
1100ZX20	1100	240	200.78	20.27	28.9	24	41	200	12	150	75	171,960
1400ZX20	1375	240	200.78	20.27	28.9	24	41	200	12	150	120	213,848
