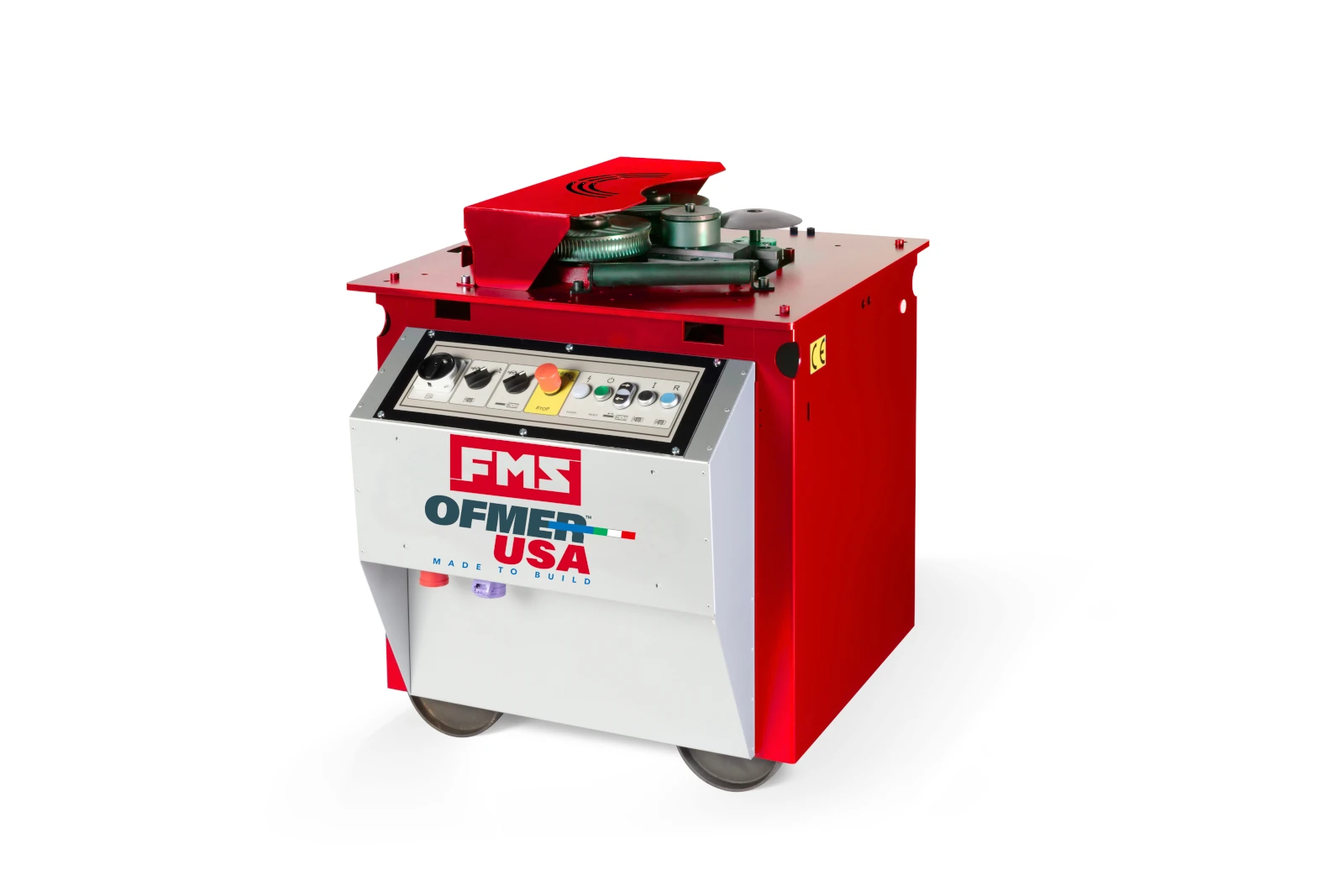

Spiral Rebar Bender- EVO Series
The EVO Spiral Bending Machine offers powerful, flexible rod calendaring for creating spirals and circular bends in rebar from 6 mm up to 32 mm. Designed to handle a wide range of diameters with ease, this machine is ideal for producing structural spirals, foundation cages, and large-radius circular elements.
Need something slightly different?
- We offer models beyond what’s listed here.
- Custom configurations available to fit your needs.
- Reach out — we’ll help you find the right fit.
Description
Key Features:
- Processes rebar from Ø6 mm to Ø32 mm
- Two-speed motor: fast for small diameters, powerful for larger rods
- Creates circles with unlimited bending radius
- Spiral diameter range: adjustable from 15 cm up to 200+ cm
- Available with horizontal or vertical production configuration
- Power options: Single-phase or Three-phase electrical setup
Specifications:
- Dimensions: 94 × 84 cm
- Height: 97 cm
- Weight: 355 kg
- Oil Type/Quantity: STAUFFER 2 5 kg
- Motor Power: 5 Hp/3.7 kW 6 Hp/4.5 kW
- Electrical: 3-phase version 400V / 50Hz
- Cycles: 15/min. 30/min.
- Working Area: 104 × 94 × h.104 cm 380 kg 1.02 m²
- Wire Capacity (Ø): *min. 1Ø: 6 mm (0.23 in) min. 1Ø: 10 mm (0.39 in) max. 1Ø: 32 mm (1.26 in)
