Straight 12
Fast, precision straightening and cutting machine for steel wire rods up to 12mm — ideal for prepping rebar in solar pile and structural projects.
Need something slightly different?
- We offer models beyond what’s listed here.
- Custom configurations available to fit your needs.
- Reach out — we’ll help you find the right fit.
Description

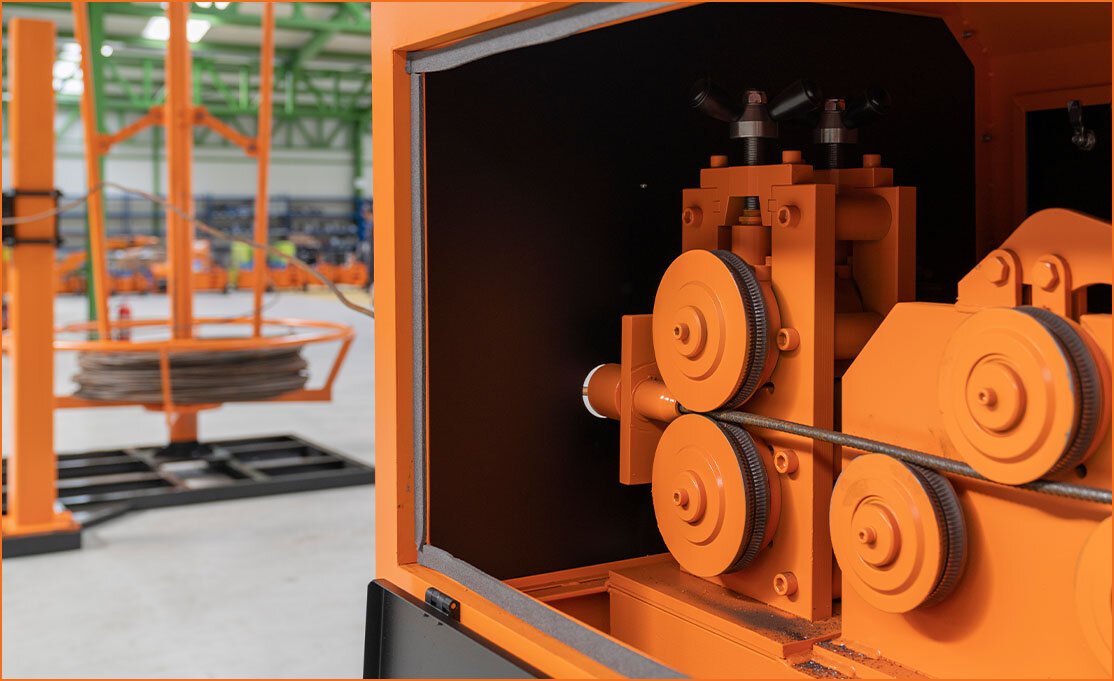

This digital rebar straightening and cutting machine is built for speed, accuracy, and ease of use in industrial settings. With a 2.5-ton decoiler pot and automated digital control, it handles continuous processing of coiled wire up to 12mm in diameter.

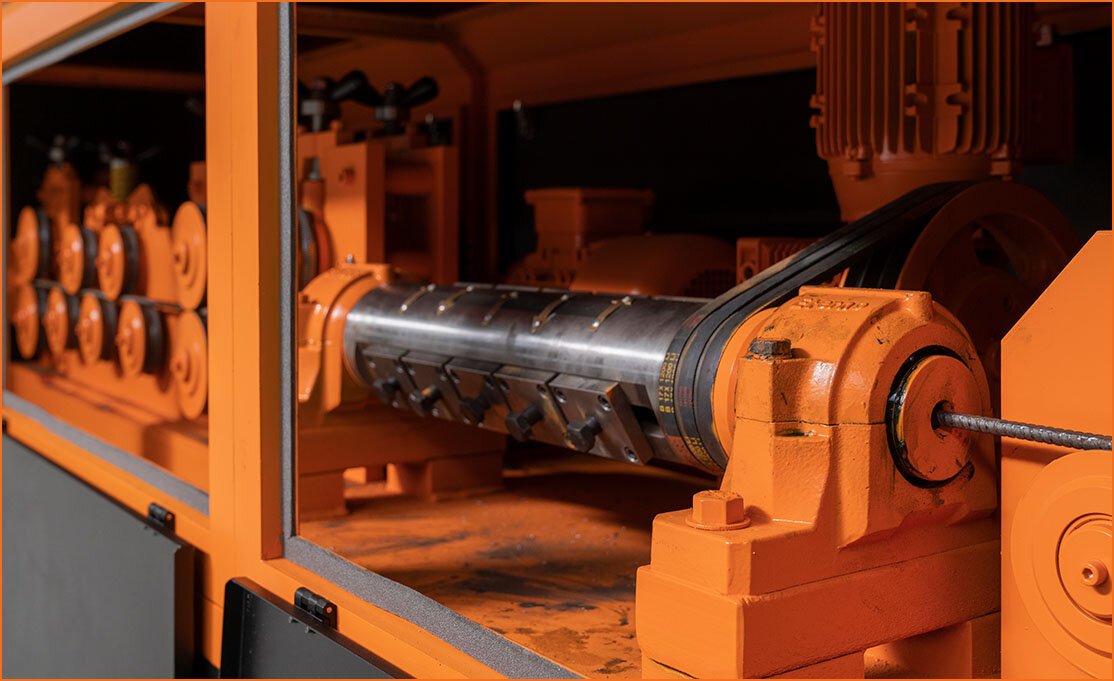

The integrated measuring system enables precise, repeatable cuts at custom lengths. Its powerful straightening and cutting motors ensure consistent results even at high production speeds. Designed for strength-rated steels up to 85 kg/mm², this machine is ideal for pre-cutting rebar used in solar piles, cages, or support structures.

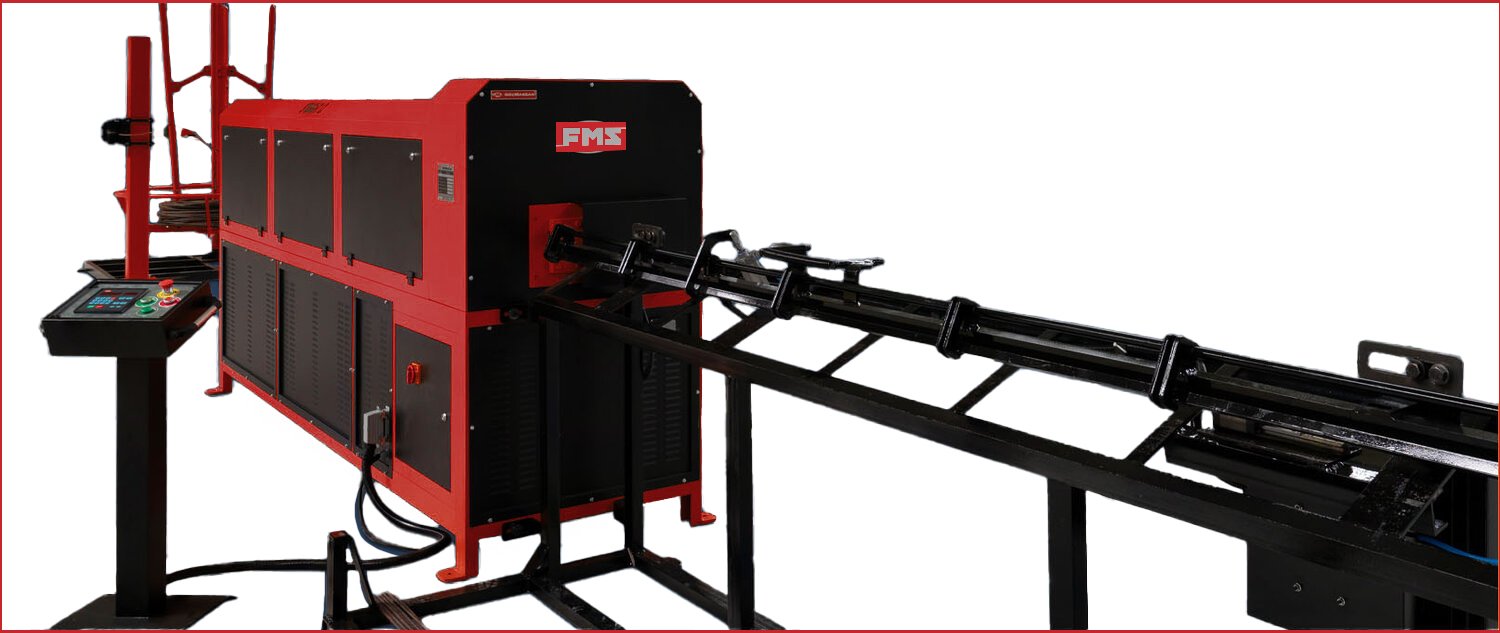

The system includes a decoiler and rebar collector, making it a complete, efficient solution for high-volume rebar prep.
Key Features:
- Digital controls for precise length measurement
- Straightens and cuts rebar from 6–12 mm diameter
- Suitable for steel strengths up to 85 kg/mm²
- Decoiler pot holds up to 2.5 tonnes of coiled wire
- High-speed operation: up to 57 meters per minute
- Complete system includes decoiler and rebar collector
Performance & Power:
- Straightening capacity: 6–12 mm
- Cutting capacity:
- Ø12 mm @ 45 kg/mm²
- Ø10 mm @ 65 kg/mm²
- Ø8 mm @ 85 kg/mm²
- Cutting speed: 57 m/min
- Rotation speed: 1450 rpm
- Voltage: 380V
- Frequency: 50Hz
- Motor Power:
- Straightening: 4 kW
- Cutting: 4 kW
- Tossing: 4 kW
Specifications by Component:

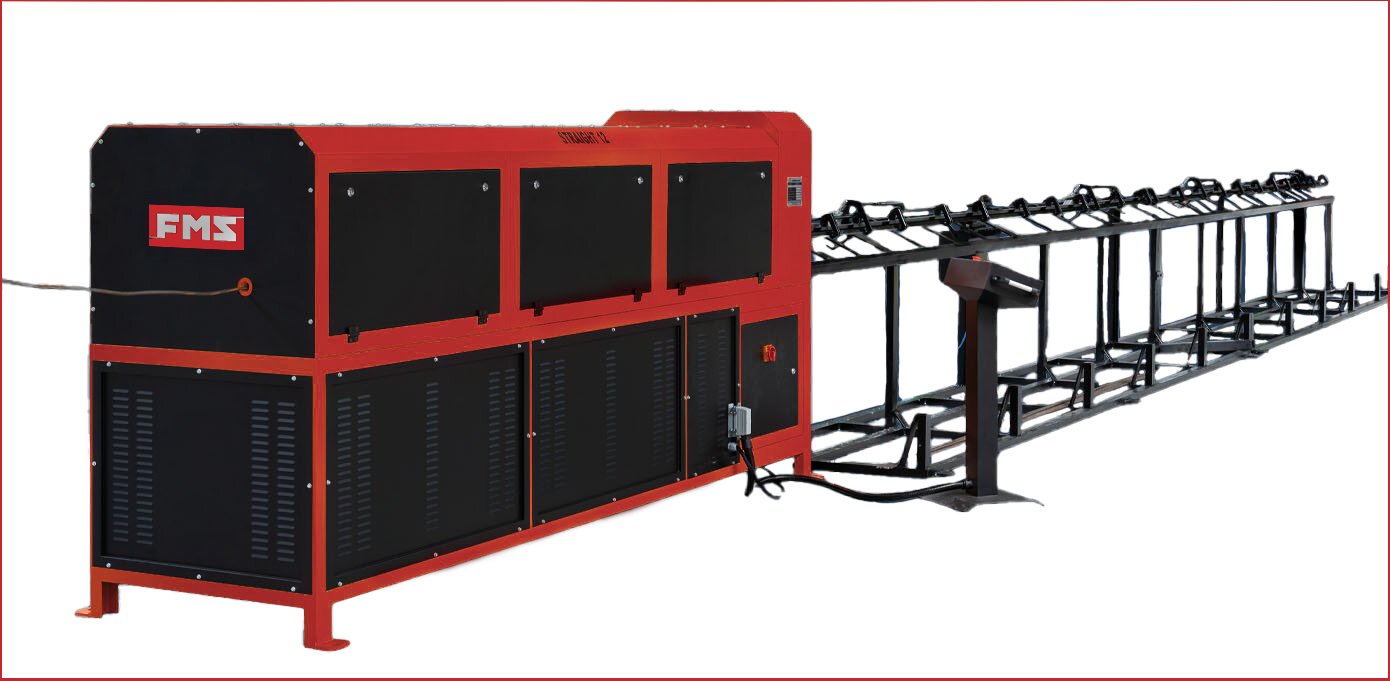

Machine Unit:
- Width: 106 cm
- Length: 246 cm
- Height: 110 cm
- Weight: 875 kg

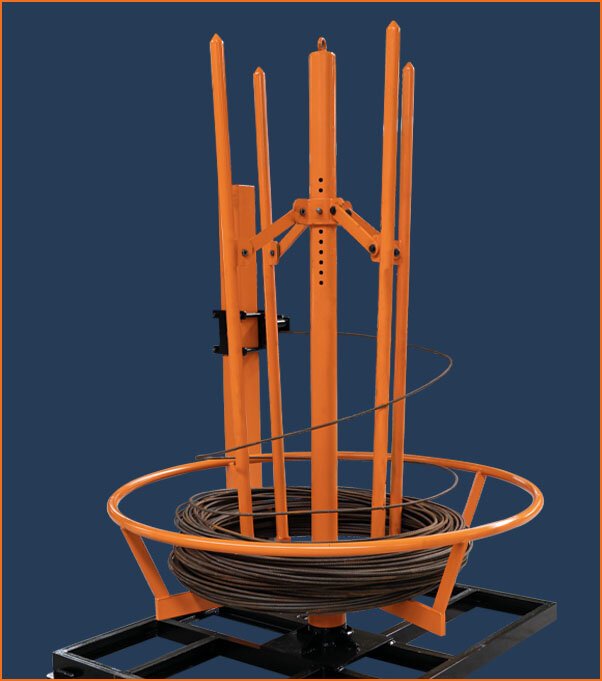

Decoiler Pot:
- Width: 192 cm
- Length: 200 cm
- Height: 250 cm
- Weight: 430 kg
- Capacity: 2.5 tonnes (wired rod)
Rebar Collector:
- Width: 80 cm
- Length: 300 cm
- Height: 80 cm
- Weight: 195 kg
