Hydraulic Punching Machine for Solar Piles
FMS Hydraulic Punching Machine for Solar Piles
Built for strength, flexibility, and high-output beam processing, the FMS Hydraulic Punching Machine delivers up to 440 tons of force and simultaneous punching on both flanges—perfect for W-beam profiles in solar tracker and pile foundations. Add the optional Shear Master module for a complete punch-and-shear line.
Need something slightly different?
- We offer models beyond what’s listed here.
- Custom configurations available to fit your needs.
- Reach out — we’ll help you find the right fit.
Description

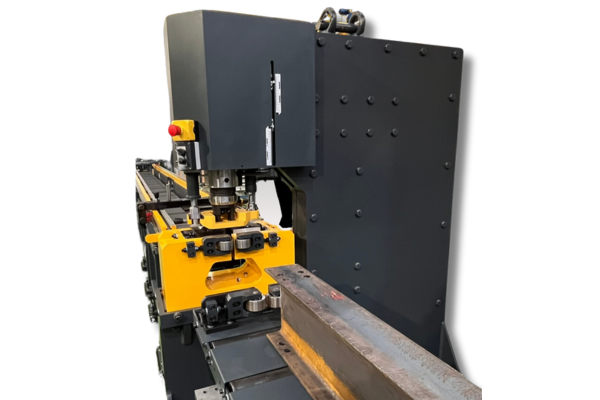

The FMS Hydraulic Punching Machine for Solar Piles (powered by the PUMA 2HI system) is a manual punching solution designed for steel beams used in solar mounting and structural steel applications. Engineered to maximize productivity and precision, this modular system handles beams up to 9 meters (approx. 30′) with flexible punching patterns, scalable force, and optional integrated shearing.
Key Features:
Punching Unit:

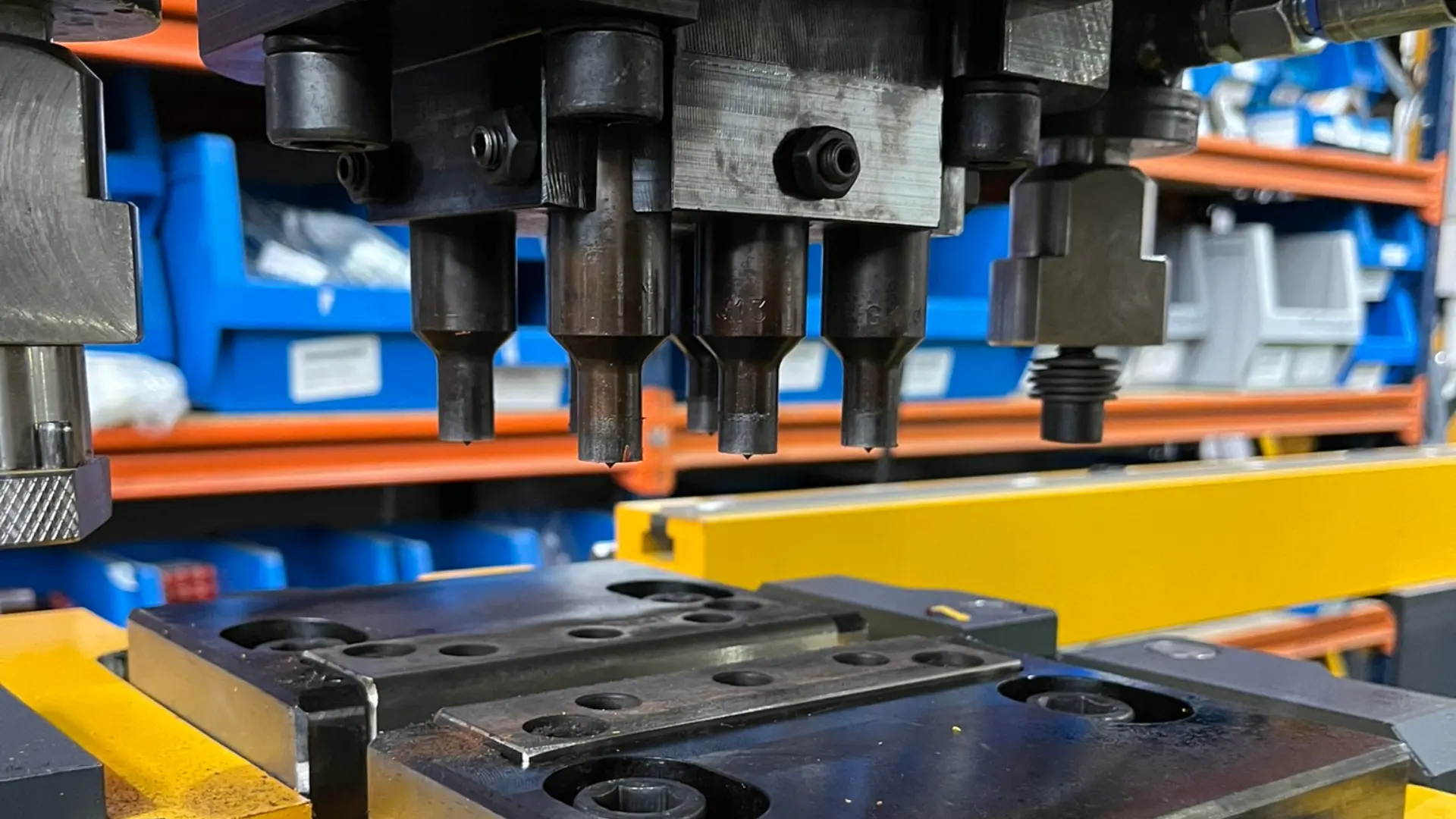

- Up to 2, 4, 6, or 8 holes in a single stroke
- Double-head tandem design for simultaneous flange punching—no need to rotate the beam
- Compatible with round and oblong punches
- Punching force options: 165, 220, or 440 tons (dual-head)
- Max flange thickness: ¾”
- Max punch diameter: 1.57″
Material Handling & Alignment:

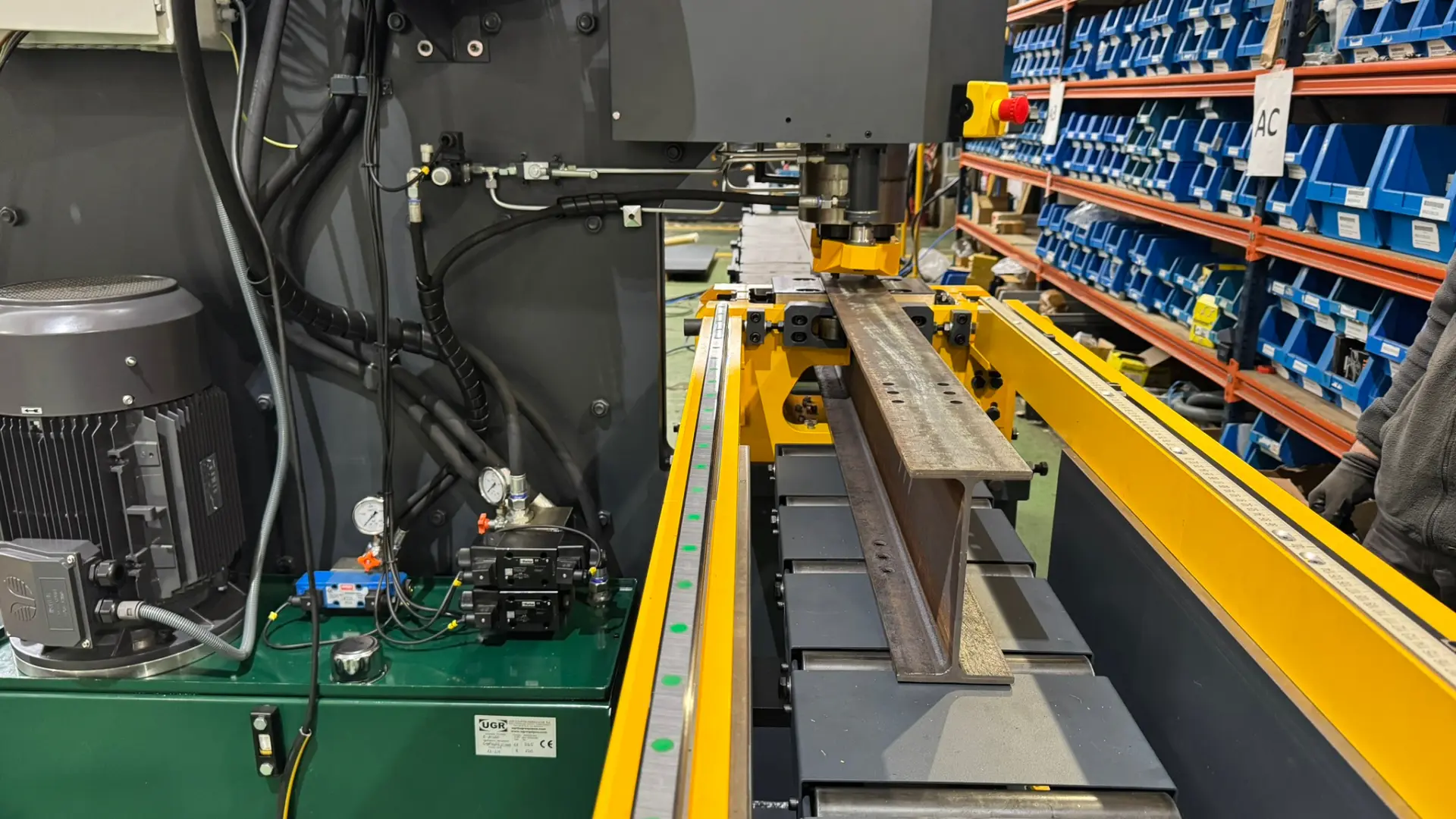

- Manual feeding via idle rollers (supports beams up to 9 meters / ~30′)
- Alignment rollers with adjustable or fixed height options
- Dual roller web alignment for symmetrical hole placement
Flexibility & Scalability:

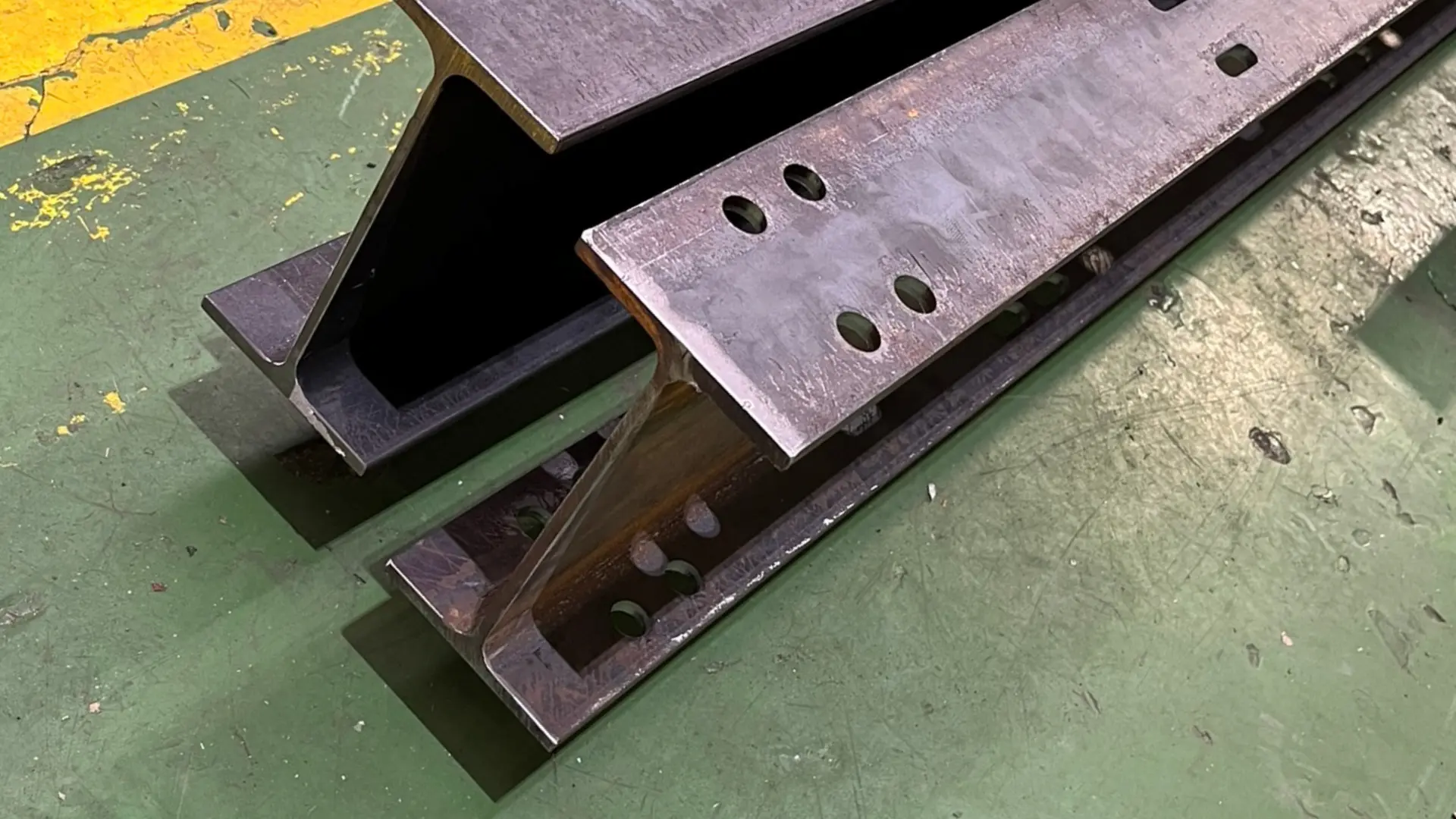

- Modular system adapts to varying hole patterns and production needs
- Optional Shear Master integration for high-powered beam shearing
- Ideal for solar pile systems, tracker structures, and general structural steel applications
Technical Range (Model Variants):
| Model | Punching Force | Max Flange Thickness | Max Punch Diameter |
|---|---|---|---|
| PUMA 2HI 165 | 181 US Tons | ¾” | 1.57″ |
| PUMA 2HI 220 | 240 US Tons | ¾” | 1.57″ |
| PUMA 2HI 440 | 480 US Tons (2×240) | ¾” | 1.57″ |
When paired with the Shear Master cutting module, the system becomes a full-service beam processing line—delivering high-throughput, low-waste manufacturing for the solar construction industry.
