Manual Rebar Bender- B Series

The B Series Rebar Benders are engineered for performance and versatility, utilizing an electric AC motor and heavy-duty gearbox for reliable operation. With manual and automatic control options, these machines offer easy angle setting using switch pins and support a variety of bends, including set-square, bent-bar, and hook bends. Optional attachments allow for even greater flexibility, enabling spiral and stirrup bending for more complex projects. Designed for both left and right turning, the B Series delivers precision, strength, and adaptability to meet the demands of any job site.

Need something slightly different?

We offer models beyond what’s listed here.
Custom configurations available to fit your needs.
Reach out — we’ll help you find the right fit.

Description

Compare the available B Series Rebar Bender models below to find the right fit for your project needs. Each machine offers powerful bending capabilities, compact dimensions, and rugged design to handle a wide range of rebar applications. Review the specifications to determine which model matches your required bending capacity, voltage, and operational requirements.

Model	Max Bending Capacity	Voltage	Horsepower	Weight	Dimensions (W x L x H)

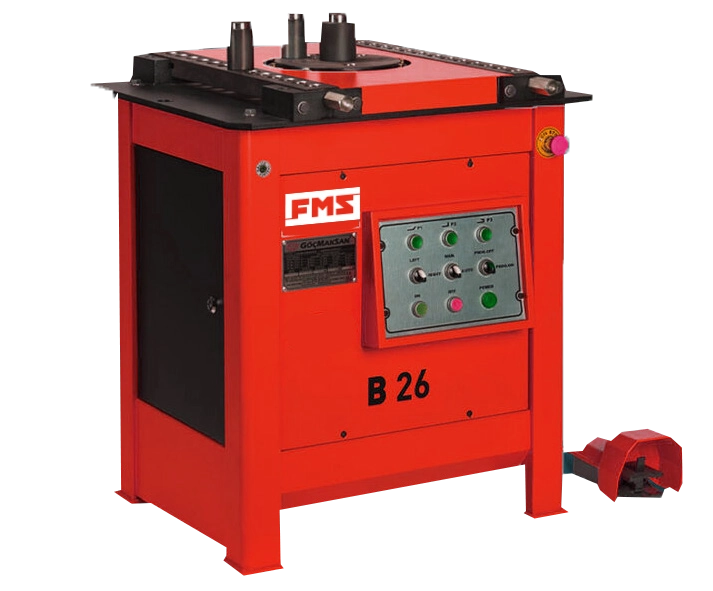

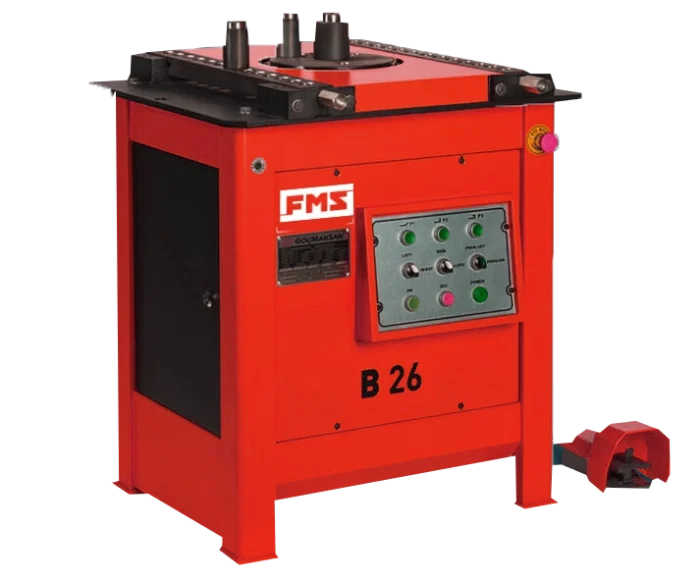

B26	#6 / 0.750″	230 or 460 VAC / 3Ph / 60Hz	2	480 lb	28” x 31” x 35”

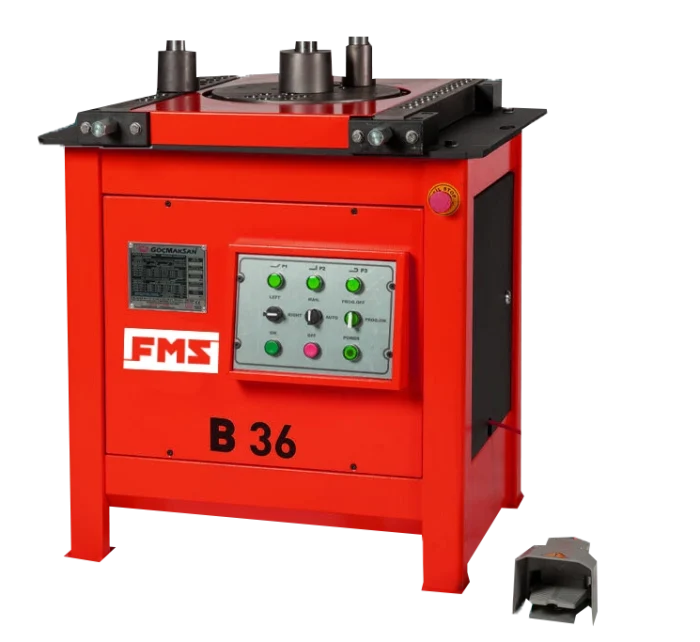

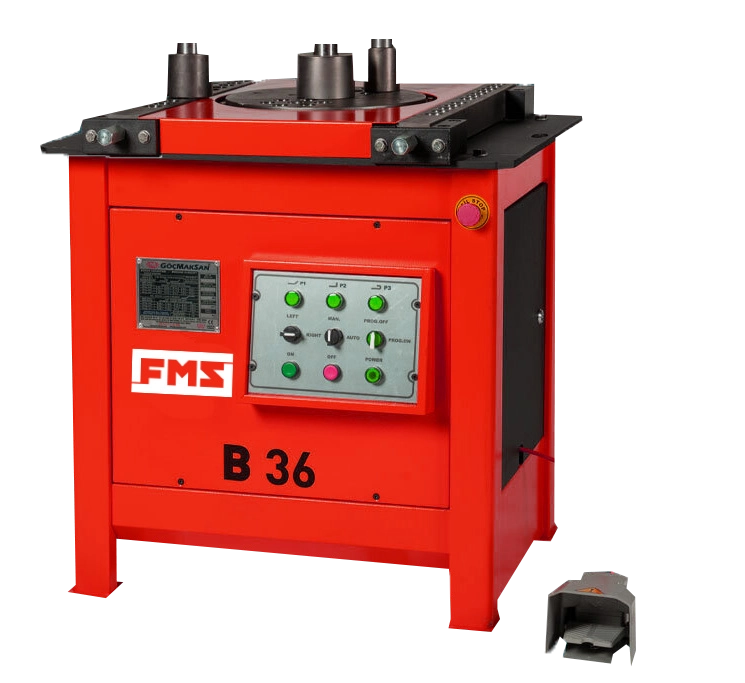

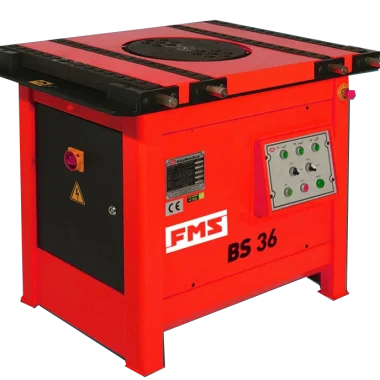

B36	Specifications Needed	230 or 460 VAC / 3Ph / 60Hz	Specifications Needed	Specifications Needed	Specifications Needed
B45	#14 / 1.690″	230 or 460 VAC / 3Ph / 60Hz	7.5	1,044 lb	34” x 47” x 35”

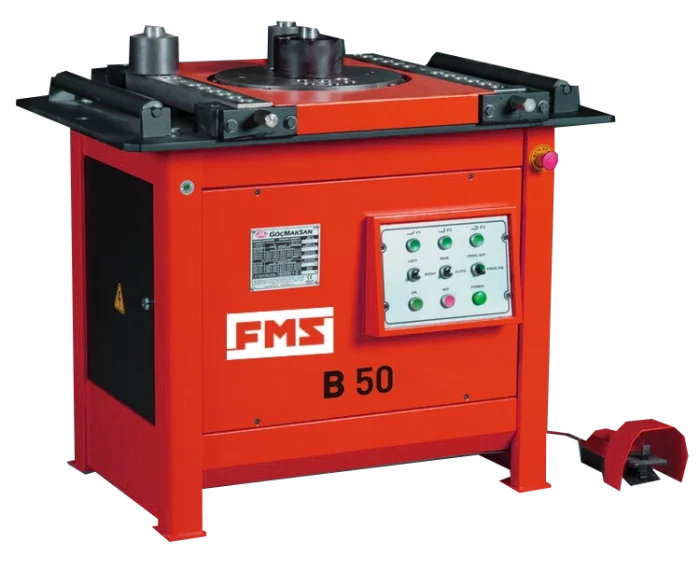

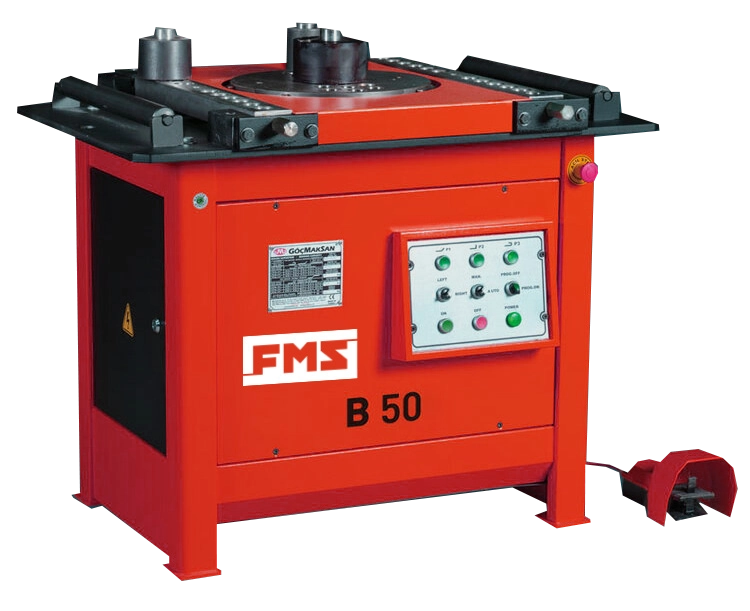

B50	#9 / 1.128″	230 or 460 VAC / 3Ph / 60Hz	4	595 lb	31” x 34” x 35”
