Rebar Bending Machines- EVO Series

Description

The EVO Series is a versatile range of rebar bending machines designed to meet the demands of both small and large-scale construction environments. With six model variants, these machines can bend rebar from small diameters up to an impressive 60 mm, depending on the unit selected.

Built with either mono-phase or three-phase power compatibility, the EVO Series adapts to a wide range of job site conditions. From compact models perfect for tight spaces, to industrial-grade machines for large-scale rebar processing, each model provides safe, consistent bending performance.

With output capacities up to 75 tons of processed steel in an 8-hour shift, the EVO line ensures your operation remains productive and efficient.

Key Features:

Available in 6 model options
Bends up to 60 mm diameter rebar (model-dependent)
Mono-phase and three-phase compatibility
Mechanical bending technology for consistent output
Suitable for both light-duty and industrial projects
High daily productivity: up to 75 tons per 8-hour shift
Simple, safe operation by a single worker

EVO SERIES BENDING MACHINE
								1Ø	2Ø	3Ø	1Ø	2Ø	3Ø

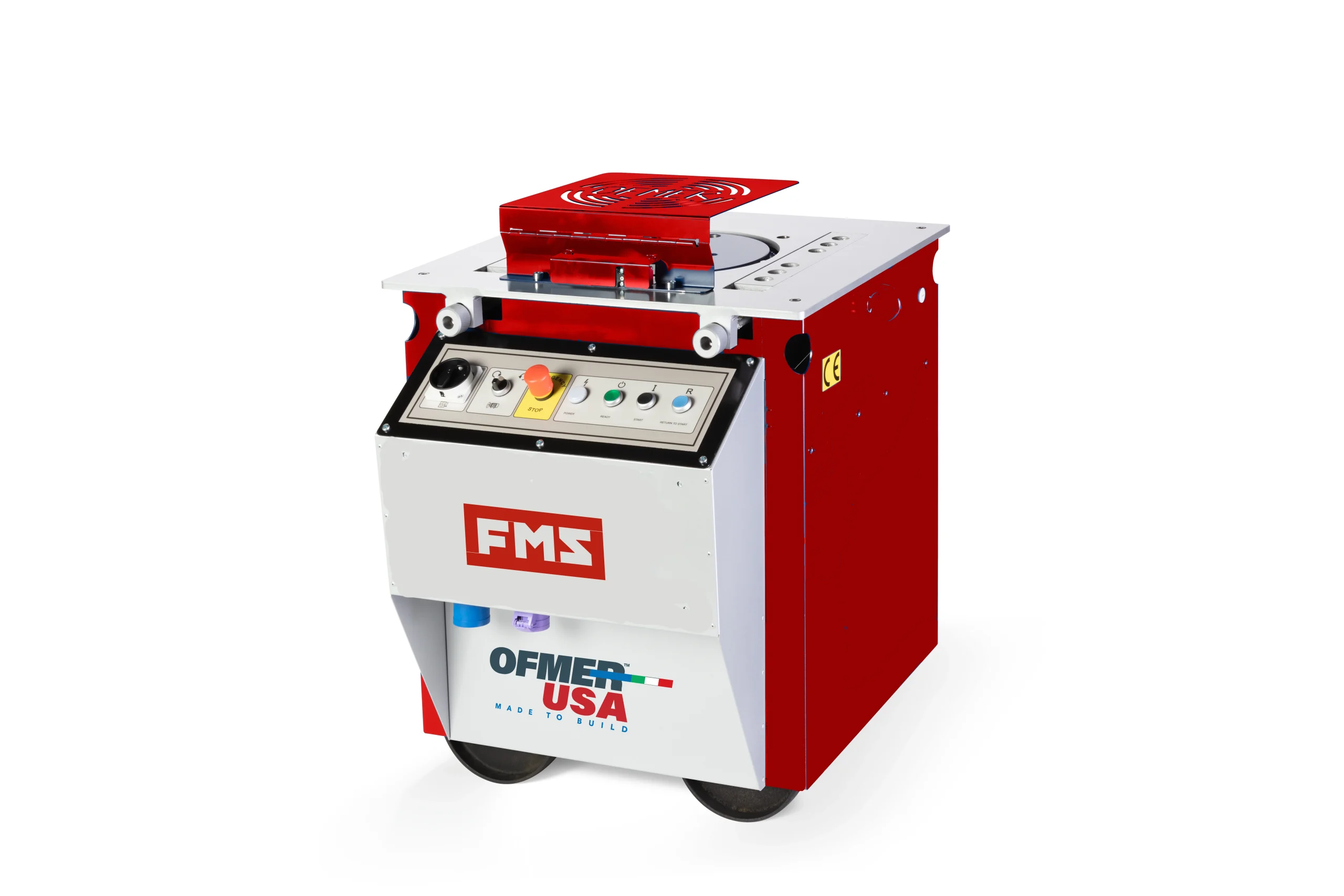

P34 EVO	75 × 80 cm h. 85 cm	285 kg	SAE 40 5 kg	3 Hp 2.2 kW	1-phase version 220V / 50Hz 3-phase version 400V / 50Hz	9/min.	105 × 75 × h.100 cm 300 kg 0.79 m²	30 mm 1.18 in	22 mm 0.87 in	18 mm 0.71 in	28 mm 1.10 in	20 mm 0.79 in	16 mm 0.63 in
P38 EVO	86 × 90 cm h. 85 cm	320 kg	SAE 40 5 kg	4 Hp 3 kW	1-phase version with inverter 3 kw 3-phase version 400V / 50Hz	9/min.	120 × 80 × h.100 cm 344 kg 0.96 m²	34 mm 1.34 in	26 mm 1.02 in	20 mm 0.79 in	32 mm 1.26 in	24 mm 0.94 in	18 mm 0.71 in
P44 EVO	105 × 95 cm h. 89 cm	469 kg	SAE 40 13 kg	4 Hp 3 kW	1-phase version with inverter 3 kw 3-phase version 400V / 50Hz	6/min.	105 × 100 × h.102 cm 469 kg 1.07 m²	38 mm 1.50 in	30 mm 1.18 in	24 mm 0.94 in	36 mm 1.42 in	28 mm 1.10 in	22 mm 0.87 in
P54 EVO	105 × 95 cm h. 89 cm	582 kg	SAE 40 13 kg	5.5 Hp 4 kW	3-phase version 400V / 50Hz	6/min.	105 × 100 × h.102 cm 601 kg 1.07 m²	44 mm 1.73 in	34 mm 1.34 in	28 mm 1.10 in	40 mm 1.57 in	32 mm 1.26 in	24 mm 0.94 in

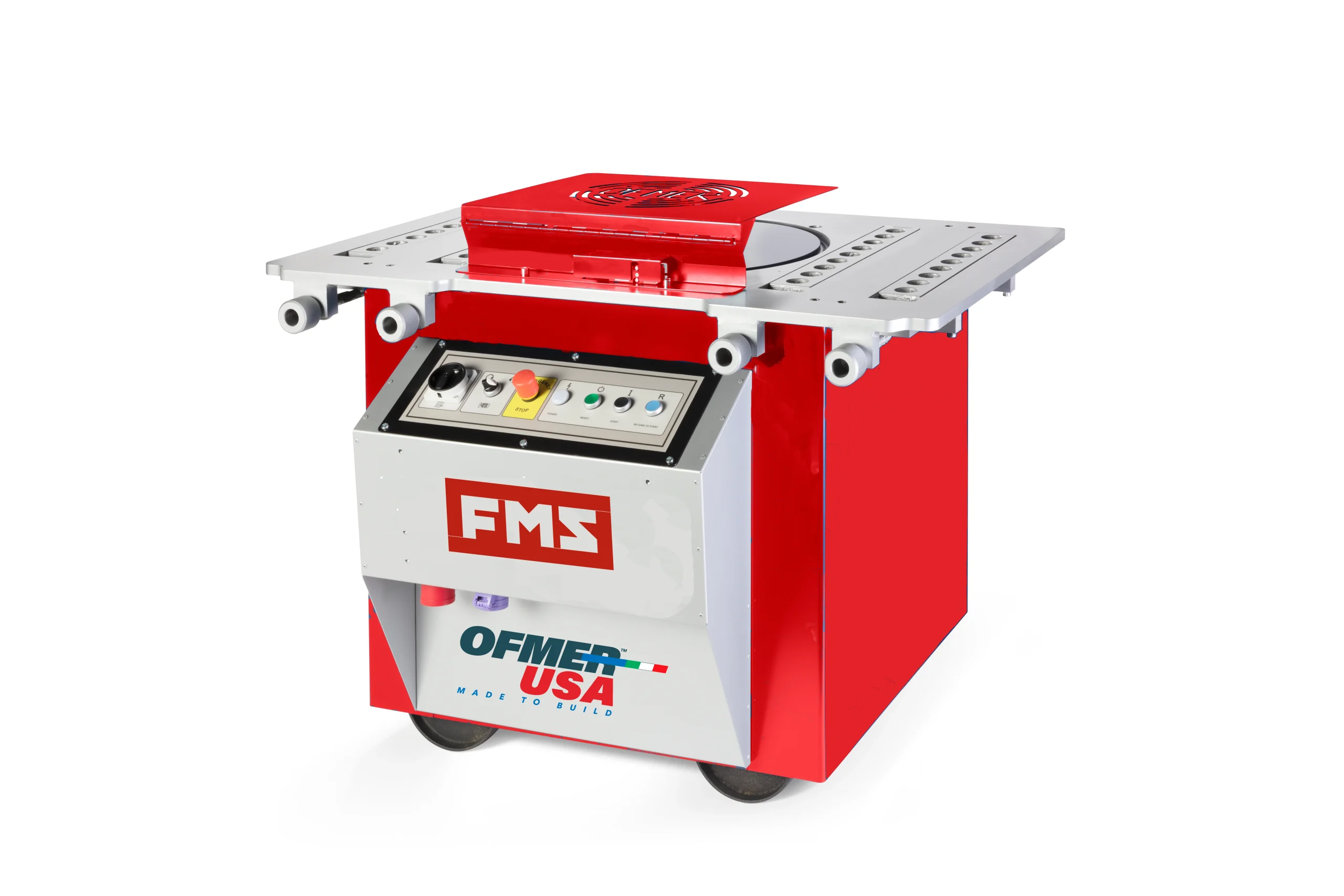

P56 EVO	130 × 95 cm h. 89 cm	676 kg	SAE 40 13 kg	7.5 Hp 5.5 kW	3-phase version 400V / 50Hz	5/min.	105 × 100 × h.102 cm 698 kg 1.07 m²	46 mm 1.81 in	36 mm 1.42 in	30 mm 1.18 in	42 mm 1.65 in	34 mm 1.34 in	26 mm 1.02 in
P74 EVO	160 × 116 cm h. 96 cm	1,650 kg	SAE 40 25 kg	10 Hp 7.5 kW	400V / 50Hz	5/min.	160 × 116 × h. 111 cm 1,650 kg 2.06 m²	60 mm 2.36 in	42 mm 1.65 in	34 mm 1.34 in	50 mm 1.97 in	36 mm 1.42 in	30 mm 1.18 in
